Englander Pellet Stove Bottom Auger Feed System Kit

• Aftermarket Part
• Complete Kit with Auger Motor

ENGLANDER PELLET STOVE BOTTOM FEEDER KIT

Included In This Kit:

• 1 x Bottom Auger Shaft (PU-AF11B)
• 1 x Auger Bearing (PU-UCF204-12)
• 1 x Locking Collar (PU-2X570)
• 1 x Bearing Gasket (PU-ABG)
• 1 x Nylon Bearing Gasket (PU-ABGN)
• 1 x Auger Motor (PU-047040)

This kit uses aftermarket parts where applicable to help you save big!

Pellet Stove Auger Bearing (block bearing) for pellet units. 3/4 bore

• These new style auger bearings have a grease fitting, which will prolong the life of the bearing and your auger motor. The new style bearing can replace the old style that did not have a grease fitting.

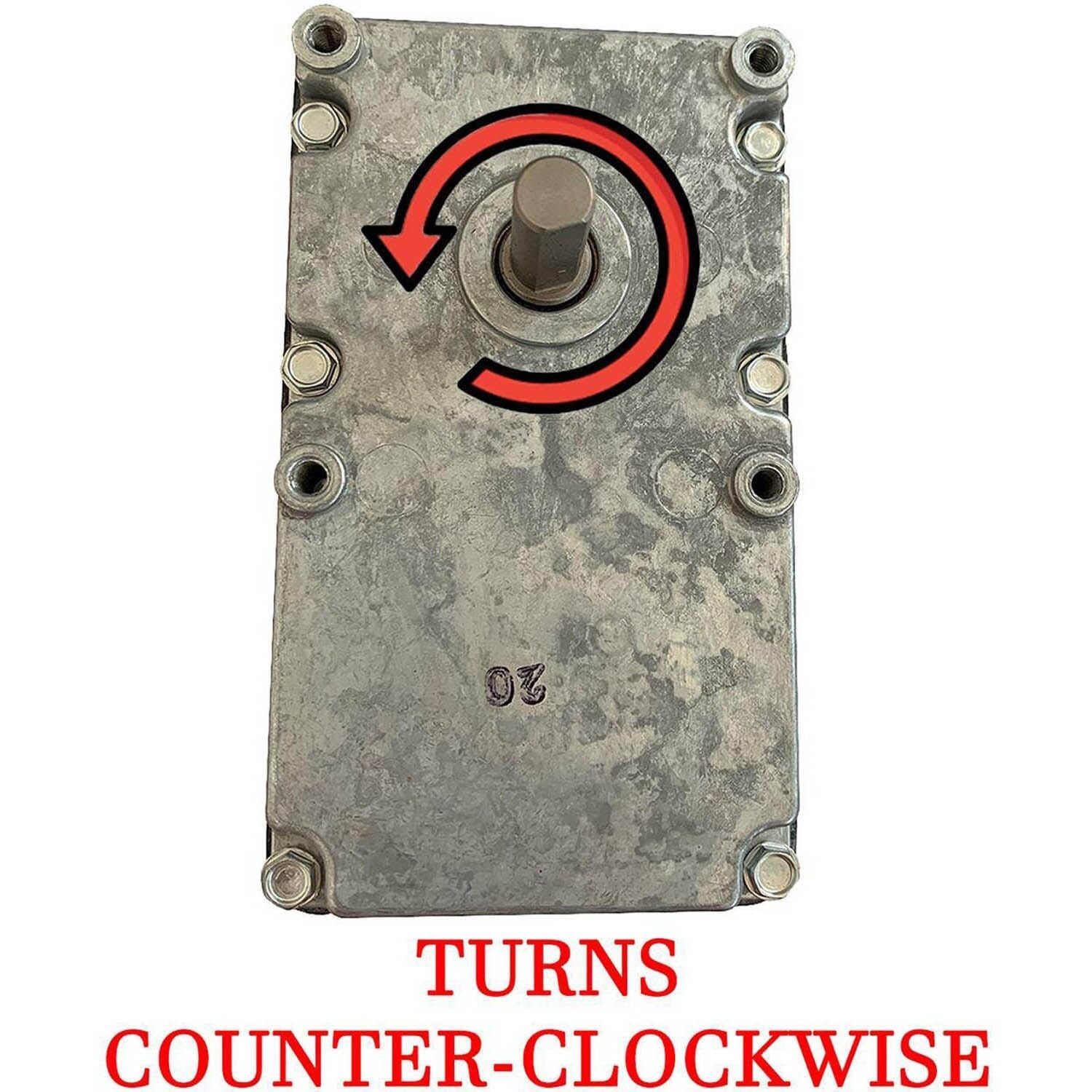

Englander Auger Motor PU-047040

• This auger motor is designed to fit Englander pellet stoves including models 25-PDV and 25-PDVC (two per unit), and is the stirrer motor on Englander's 10-CPM multi-fuel stove. This auger motor is as powerful as it is quiet and provides a steady rotation that allows for an even distribution of fuel.

Englander Stove Locking Collar

• 3/4" I.D. Auger Shaft Locking Collar for pellet stoves. Price listed is for one piece (two pieces are on each stove, one per auger).

The bearing gaskets come in two different styles:

• The fiberglass (soft, Part PU‐ABG) type (which was primarily used on earlier model units, 2001 and older) and the nylon (hard, Part PU‐ABGN) type (which is used on our current units, 2002 to present)

Englander Bottom Auger Shaft Part PU-AF11B

• Englander Bottom Auger Shaft. for all Englander pellet stove models 2001 and later.

• Product Weight: 6.5 lbs

This product is compatible with the following models

Englander
• 25-PDV

  Products from us compatible with the Englander 25-PDV

  2 Pack Of Englander Auger Motors By Gleason Avery: PU-047040-AMP-GA (2 Pack)

  Englander Auger Motor 1 RPM Counter Clockwise (OEM): PU-047040

  2 Pack of Englander Auger Motors: PU-047040-AMP-N

  Englander Auger Motor 1RPM By Gleason Avery: PU-047040-GA

  Englander Auger Motor Replacement: PU-047040-AMP-N

  Englander Baffle Upgrade: PU-5206-10

  Englander Auger Bearing (OEM), PU-UCF204-12

  Englander Auger Bearing: PU-UCF204-12-AMP

  Englander Auger Motor Support Sleeve: PU-AMS-AMP

  Englander Auger Motor Support Shelf: PU-MS

  Englander Auger Bearing Gasket (For Models Pre 2001): PU-ABG

  Englander Auger Shaft Locking Collar: PU-2X570

  Englander 6" Round Combustion Motor to Housing Gasket: PU-CMG

  Combustion Blower 1/4" Slotted-Hex Piercing Screws (Set of 6): HDW500

  Combustion Blower Quick Disconnect Mounting Screw Hex Nuts (Set of 6): HDW600

• 25-PDVC

  Products from us compatible with the Englander 25-PDVC

  2 Pack Of Englander Auger Motors By Gleason Avery: PU-047040-AMP-GA (2 Pack)

  Englander Auger Motor 1 RPM Counter Clockwise (OEM): PU-047040

  Englander Bottom Auger Feed System Kit With Gleason Avery Motors

  2 Pack of Englander Auger Motors: PU-047040-AMP-N

  Englander Auger Motor 1RPM By Gleason Avery: PU-047040-GA

  Englander Auger Motor Replacement: PU-047040-AMP-N

  Englander Auger Bearing (OEM), PU-UCF204-12

  Englander Auger Bearing: PU-UCF204-12-AMP

  Englander Auger Motor Support Sleeve: PU-AMS-AMP

  Englander Auger Motor Support Shelf: PU-MS

  Englander Auger Bearing Gasket (For Models Pre 2001): PU-ABG

  Englander Auger Shaft Locking Collar: PU-2X570

  Englander 6" Round Combustion Motor to Housing Gasket: PU-CMG

  Combustion Blower 1/4" Slotted-Hex Piercing Screws (Set of 6): HDW500

  Combustion Blower Quick Disconnect Mounting Screw Hex Nuts (Set of 6): HDW600

• 25-PI

  Products from us compatible with the Englander 25-PI

  2 Pack Of Englander Auger Motors By Gleason Avery: PU-047040-AMP-GA (2 Pack)

  Englander Auger Motor 1 RPM Counter Clockwise (OEM): PU-047040

  Englander 2 RPM Auger Feed Motor: CU-047042

  2 Pack of Englander Auger Motors: PU-047040-AMP-N

  Englander 2RPM Auger Motor (USA Made By Gleason Avery): CU-047042-AMP

  Englander Auger Motor 1RPM By Gleason Avery: PU-047040-GA

  Englander Auger Motor Replacement: PU-047040-AMP-N

  Englander Baffle Upgrade: PU-5206-10

  Englander Auger Bearing (OEM), PU-UCF204-12

  Englander Auger Bearing: PU-UCF204-12-AMP

  Englander Auger Motor Support Sleeve: PU-AMS-AMP

  Englander Auger Motor Support Shelf: PU-MS

  Englander Auger Bearing Gasket (For Models Pre 2001): PU-ABG

  Englander Auger Shaft Locking Collar: PU-2X570

  Englander 6" Round Combustion Motor to Housing Gasket: PU-CMG
